TDC 18/4 Cordless Drill

Functions

Pure power, controlled in four gears.

• Powerful for work with screws and drills with larger diameters, rapid for clean work progress when working with small diameters
• Maximum performance: Thanks to the extremely powerful, brushless, and therefore long-lasting, EC-TEC motor
• Robust: Resilient four-speed metal gearbox, also fully covered by the comprehensive support provided by Festool Service
• The QUADRIVE with four gears for every working situation: From screwdriving with 50 Nm torque in first gear to precise drilling at 3600 rpm in fourth gear
• Versatile: Thanks to the FastFix interface, quick conversion without the need for tools for drilling, screwdriving, angular drilling and angular screwdriving
• The depth stop and eccentric adapter also enable depth-limited screwdriving close to edges
• Flexible cordless system: For applications with high power needs, the 4.0 Ah Li-HighPower Compact battery pack provides the ideal powerful, compact and lightweight solution. The 5.0 Ah battery pack is the right choice for even more power for particularly difficult drilling and screwdriving applications. Fully covered: Needless to say, the comprehensive support provided by Festool Service also applies to battery packs
• Mobile: The QUADRIVE comes in a Systainer³ and so can be seamlessly integrated into bott vehicle equipment for easy transportation from the workshop to the construction site

Product highlights

• High-speed and durable.The robust four-speed metal gearbox stands out in QUADRIVE with its enormous power and high speeds and it can handle even the greatest of loads. The fully optimised switching concept allows users to switch from any gear straight to any other in a fast and controlled manner. The latest generation of brushless EC-TEC motors enables rapid work progress and clean drilling results.
• Unrivalled range of applications.The large number of attachments, combined with perfectly matched accessories, makes the TDC the most versatile drill and it is unrivalled in its class. The smart FastFix interface allows the attachments to be changed quickly and without the need for any tools – for flexible drilling, screwdriving, angular drilling and angular screwdriving. The depth stop and eccentric adapter also enable depth-limited screwdriving close to edges.
• Compact with extra safety.Thanks to its excellent handle ergonomics and short design, the TDC fits perfectly in your hand even when it is bursting with power. To avoid hazards: The electronic KickbackStop minimises the risk of you twisting your wrist if the drill suddenly jams.

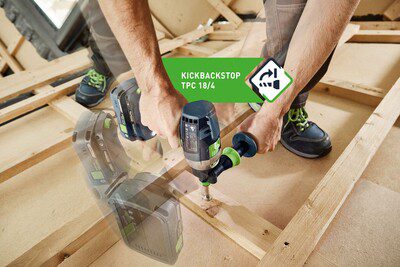

Greater Safety When Working

The electronic KickbackStop prevents your wrist from twisting dangerously if the drill suddenly becomes caught or jammed, therefore ensuring improved safety when working.

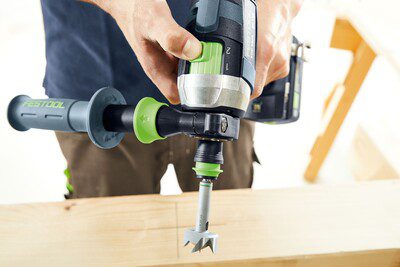

QUADRADRIVE-4 Gears, with the right one for every application

1st gear: Demanding tightening of screws up to 10 mm. 2nd gear: Quick screwdriving up to 8 x 300 mm in size. 3rd gear: Powerful drilling with auger bits of up to 20 mm. 4th gear: Quick drilling with medium and small drill bits up to 35 mm, for example Forstner drill bits.

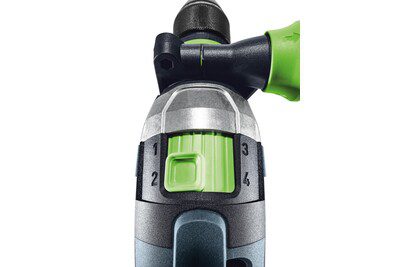

Optimized Gear Switching

Fast, safe, direct! Switching in any direction – from any gear straight to any other, without intermediate stages. Fixed stops ensure clear engaging. Fast downshifting possible as required.

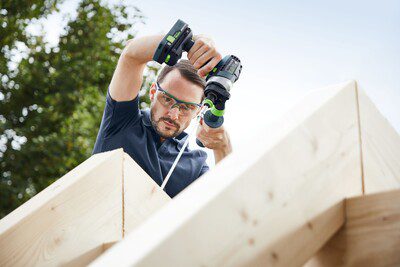

Increased Power in 2nd Gear

40% more torque compared to the previous model for full traction with 8 mm screws.
